4. The Wrist and Hand

Skeletal Landmarks with Palpation Instructions

Identification of the distal radius bony landmarks including the styloid process and Lister's tubercle.
Figure 4.1. Skeletal Landmarks of the Distal Radius by Kathleen Alsup & Glenn M. Fox has been modified (altered) and is used with permission of the author.
Identification of the distal ulna bony landmarks including the styloid process and head of the ulna.
Figure 4.2. Skeletal Landmarks of the Distal Ulna by Kathleen Alsup & Glenn M. Fox has been modified (altered) and is used with permission of the author.
Anterior view of the writst and hand carpal bones with the proximal and distal carpal rows present and identifying individual bones, which are color-coded.
Figure 4.3. Carpal Bones; Palmar View by Kathleen Alsup & Glenn M. Fox has been modified (altered) and is used with permission of the author.
Palmar view of bones and joints of the hand with bony landmarks and joints identified. The bony regions of the right anterior wrist and hand, carpals, metacarpals, proximal phalanxes, middle phalanxes, and distal phalanxes are highlighted in different colors and the metacarpophalangeal, proximal interphalangeal, and distal interphalangeal joints are also identified.
Figure 4.4. Bones and Joints of the Hand; Palmar View by Kathleen Alsup & Glenn M. Fox has been modified (altered) and is used with permission of the author.

Radius

  • Styloid Process of the Radius
    • How to Palpate
      • Position of Partner: Sitting
      • Directions: The styloid process is a small protrusion of the bone at its distal end. To palpate, begin at the distal lateral aspect of the radius and simply feel the very end of the radius.
    • Muscles That Attach Here: Brachioradialis
  • Dorsal Tubercle of the Radius (Lister’s Tubercle)
    • How to Palpate
      • Position of Partner: Sitting with a pronated forearm
      • Directions: Begin by palpating the posterior side of the distal aspect of the radius. Feel for a small bump located midway across the radius. Note that if you have gone to the middle of the wrist, you have gone too far.
    • Structure Located Near this Landmark: The tendon of the extensor pollicis longus muscle hinges around this skeletal landmark.

Ulna

  • Head of the Ulna
    • How to Palpate
      • Position of Partner: Sitting with a pronated forearm
      • Directions: Locate the posterior side of the distal aspect of the ulna. The head of this bone is the large bulbous area at the distal end. The head is often visible prior to palpation.
  • Styloid Process of the Ulna
    • How to Palpate
      • Position of Partner: Sitting
      • Directions: The styloid process is a small protrusion of the bone at its distal end. To palpate, begin at the distal lateral aspect of the ulna and simply feel the very end of the ulna.

Carpals

  • Scaphoid
    • How to Palpate
      • Position of Partner: Sitting with a pronated forearm
      • Directions: Begin by viewing the dorsal side of your partner’s hand. The best way to access the scaphoid bone is to feel the floor of the anatomical snuffbox. To locate this area, have your partner extend their thumb. View the tendon of the extensor pollicis longus, which is now popping out, along with the more lateral tendons of the extensor pollicis brevis and abductor pollicis longus. Palpate between these two sets of tendons to feel the floor of the snuffbox, where the scaphoid sits.
    • Muscles That Attach Here: Abductor pollicis brevis
    • Other Structures That Attach Here: Transverse carpal ligament
  • Lunate
    • How to Palpate
      • Position of Partner: Sitting with a pronated forearm
      • Directions: Locate the extensor creases of the skin on the dorsal side of your partner’s wrist. Palpate immediately distal to these creases at the midline of the wrist, in line with the 3rd digit. While your partner’s wrist is extended, the lunate is not very palpable; however, when their wrist is flexed, this bone becomes easier to access and feel.
  • Pisiform
    • How to Palpate
      • Position of Partner: Sitting with a supinated forearm
      • Directions: Begin by viewing the palmar side of your partner’s hand. Identify the flexor creases of the skin along the wrist. Palpate immediately distal to these creases on the medial side of the hand. Essentially aim for palpating the very corner of the hand. The pisiform will feel like a very small ball-like structure.
    • Muscles That Attach Here: Flexor carpi ulnaris, abductor digiti minimi, and adductor digiti minimi
    • Other Structures That Attach Here: Transverse carpal ligament
  • Triquetrum
    • How to Palpate
      • Position of Partner: Sitting
      • Directions: The triquetrum is located deep to the pisiform so it can be palpated at the medial border of the hand, between the palmar and dorsal surfaces of the hand.
  • Trapezium
    • How to Palpate
      • Position of Partner: Sitting with a pronated forearm
      • Directions: This bone is located distal to the scaphoid, so begin by palpating the scaphoid on the dorsal side of the hand. Move distal from the scaphoid until you feel a change in bony landmarks. The other way to approach this bone is to first palpate the 1st metacarpal until you reach the proximal end of this bone and begin to approach the trapezium.
    • Muscles That Attach Here: Abductor pollicis brevis, flexor pollicis brevis, and opponens pollicis
    • Other Structures That Attach Here: Transverse carpal ligament
  • Trapezoid
    • How to Palpate
      • Position of Partner: Sitting with a pronated forearm
      • Directions: Locate the trapezium first, and then move medially to reach the area of this carpal bone, which lies between the capitate and trapezium. Keep in mind this carpal bone is more in alignment with the 2nd metacarpal when you perform your palpation.
    • Muscles That Attach Here: Adductor pollicis
  • Capitate
    • How to Palpate
      • Position of Partner: Sitting with a pronated forearm
      • Directions: This bone is located immediately distal to the lunate, so begin by finding the lunate from the dorsal side of the hand and move immediately distal to the bone. Stay in line with the 3rd metacarpal when moving distally, and once you have landed on a dome-shaped bone, you have found the capitate.
    • Muscles That Attach Here: Adductor pollicis
  • Hamate
    • How to Palpate
      • Position of Partner: Sitting with a supinated forearm
      • Directions: Begin by palpating the pisiform on the palmar side of the palm. Move about ½–1 inch on a diagonal to the 2nd digit. Press firmly into the hand to feel the hook of the hamate, which is a palpable protrusion of the bone.
    • Muscles That Attach Here: Flexor carpi ulnaris, flexor digiti minimi brevis, and opponens digiti minimi
    • Other Structures that Attach Here: Transverse carpal ligament

Metacarpals

  • How to Palpate: The metacarpals can be accessed most easily from the dorsal side. Begin at the head of an individual metacarpal and palpate, moving proximally until a change in the skeletal anatomy can be felt, indicating you are now palpating a carpal bone.
  • Muscles That Attach Here:
    • All Metacarpals: Palmar and dorsal interossei
    • 1st Metacarpal: Abductor pollicis longus and opponens pollicis
    • 2nd Metacarpal: Flexor carpi radialis, extensor carpi radialis longus, and brevis and abductor pollicis
    • 3rd Metacarpal: Flexor carpi radialis, extensor carpi radialis longus and brevis, and abductor pollicis
    • 5th Metacarpal: Flexor carpi ulnaris, extensor carpi ulnaris, and opponens digiti minimi
    • Palmar and dorsal Interossei also attach to different areas of the digits.

Phalanges

  • How to Palpate: Prior to palpating the proximal, middle, or distal phalanx of a digit, view Figure 4.4 of the skeletal anatomy of the hand. Ensure your ability to name and locate the phalanges, and then palpate the general area of each individual bone.
  • Muscles That Attach Here:
    • Distal Phalanx of Digit 1: Extensor pollicis longus, flexor pollicis longus
    • Proximal Phalanx of Digit 1: Extensor pollicis brevis, abductor pollicis brevis, flexor pollicis brevis, adductor pollicis
    • Distal Phalanges of Digits 2–5: Flexor digitorum profundus
    • Middle Phalanges of Digits 2–5: Flexor digitorum superficialis
    • Proximal Phalanx of Digit 5: Abductor digiti minimi, flexor digiti minimi brevis, and adductor digiti minimi
    • Palmar and dorsal Interossei also attach to different areas of the digits.

Joints

  • How to Palpate: The individual metacarpophalangeal and interphalangeal joints can be palpated. First, using Figure 4.4, identify which joint to palpate and feel around the joint surfaces from all accessible points.

Musculature with Palpation Instructions

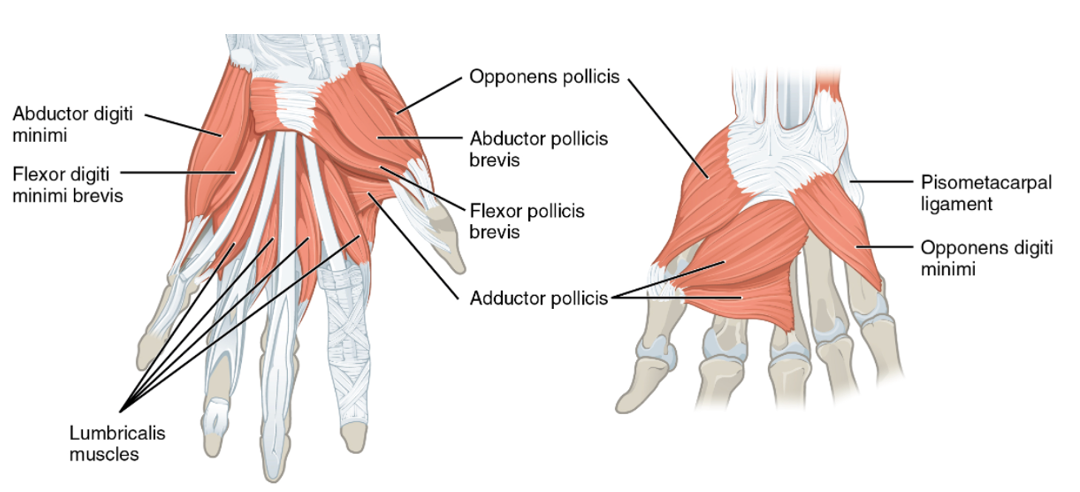

Palmar view of several muscles of the anterior right hand with superficial, left, and deep, right, intrinsic muscles present and individual muslces identified.
Figure 4.5. Muscles of the Hand; Palmar Views of Superficial and Deep Layers by J. Gordon Betts, Kelly A. Young, James A. Wise, Eddie Johnson, Brandon Poe, Dean H. Kruse, Oksana Korol, Jody E. Johnson, Mark Womble, Peter DeSaix has been modified (cropped) and is used under a CC BY 4.0 license.

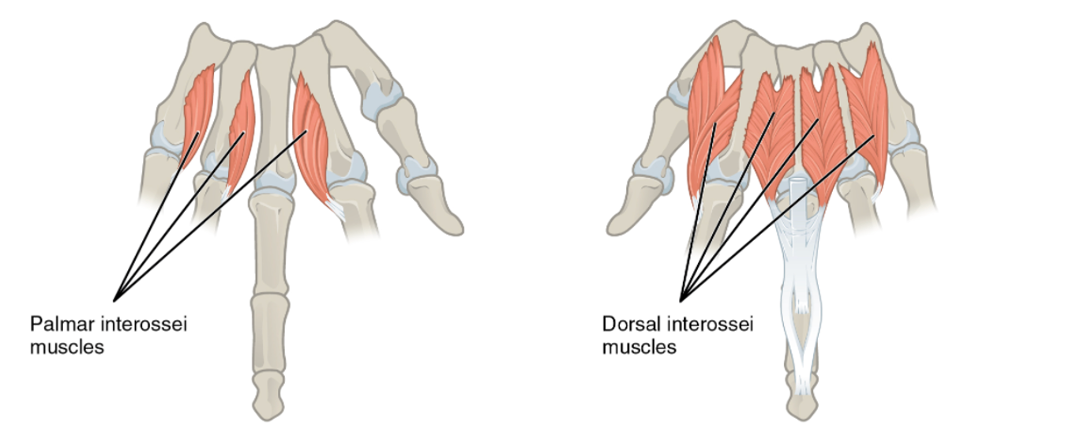

Palmar view and dorsal view of the interossei muscles of the left hand with interossei muscles identified.
Figure 4.6. Interossei Muscles of the hand; Palmar View and Dorsal View by J. Gordon Betts, Kelly A. Young, James A. Wise, Eddie Johnson, Brandon Poe, Dean H. Kruse, Oksana Korol, Jody E. Johnson, Mark Womble, Peter DeSaix has been modified (cropped) and is used under a CC BY 4.0 license.

Abductor Pollicis Longus

  • Origin(s): Ulna, radius, and interosseous membrane
  • Insertion(s): 1st metacarpal
  • Action(s): Abduction and extension of the 1st digit
  • Innervation(s): Posterior interosseous nerve
  • How to Palpate
    • Position of Partner: Sitting with a neutral or pronated forearm
    • Directions: This smaller muscle can be difficult to distinguish from surrounding musculature but can be palpated as it wraps over the distal radius. Have your partner extend their thumb to make the tendons of the anatomical snuffbox more apparent. This muscle tendon helps create the lateral border of this landmark and can be a guide to palpating the distal end of this muscle.

Extensor Pollicis Brevis

  • Origin(s): Radius and interosseous membrane
  • Insertion(s): Proximal phalanx of the 1st digit
  • Action(s): Extension of the 1st digit
  • Innervation(s): Posterior interosseous nerve
  • How to Palpate
    • Position of Partner: Sitting with a neutral or pronated forearm
    • Directions: The orientation of this muscle is similar to the abductor pollicis longus. It begins in the posterior forearm and then wraps around the radius. Its distal tendon is the other tendon helping create the lateral border of the anatomical snuffbox. Begin your palpation midway in the posterior forearm, and then follow the direction of the muscle to insertion.

Extensor Pollicis Longus

  • Origin(s): Ulna and interosseous membrane
  • Insertion(s): Distal phalanx of the 1st digit
  • Action(s): Extension of the 1st digit
  • Innervation(s): Posterior interosseous nerve
  • How to Palpate
    • Position of Partner: Sitting with a neutral or pronated forearm
    • Directions: Because of the depth and size of this muscle, it proves difficult to palpate. When attempting to do so, travel from the origin of the distal posterior forearm to the end of the first digit. The tendon of this muscle creates the medial border of the anatomical snuffbox.

Flexor Pollicis Longus

  • Origin(s): Radius and interosseous membrane
  • Insertion(s): Distal phalanx of the 1st digit
  • Action(s): Flexion of the 1st digit
  • Innervation(s): Anterior interosseous nerve
  • How to Palpate
    • Position of Partner: Sitting with a neutral or pronated forearm
    • Directions: Because this muscle is located deep to the anterior forearm musculature, it can be very difficult to palpate. When attempting to do so, begin midway on the anterior forearm on the radial side. Then travel down the forearm to the end of the 1st digit.

Thenar Muscles

  • Abductor Pollicis Brevis
    • Origin(s): Scaphoid and trapezium
    • Insertion(s): Proximal phalanx of the 1st digit
    • Action(s): Abduction of the 1st digit
    • Innervation(s): Recurrent branch of the median nerve
  • Flexor Pollicis Brevis
    • Origin(s): Trapezium and flexor retinaculum
    • Insertion(s): Proximal phalanx of the 1st digit
    • Action(s): Flexion of the 1st metacarpophalangeal joint
    • Innervation(s): Recurrent branch of the median nerve
  • Opponens Pollicis
    • Origin(s): Trapezium and transverse carpal ligament
    • Insertion(s): 1st metacarpal
    • Action(s): Opposition
    • Innervation(s): Recurrent branch of the median nerve
  • Adductor Pollicis
    • Origin
      • Transverse Head: 3rd metacarpal
      • Oblique Head: 2nd and 3rd metacarpals, trapezoid, and capitate
    • Insertion(s): 1st proximal phalanx
    • Action(s): Adduction of the 1st digit
    • Innervation(s): Deep branch of the ulnar nerve
  • How to Palpate the Thenar Muscles:
    • Position of Partner: Sitting with a supinated forearm
    • Directions: To palpate this group of muscles, first identify the soft tissue pad at the base of the thumb called the thenar eminence. Palpate this bulge of soft tissue to collectively examine these muscles.

Hypothenar Muscles

  • Abductor Digiti Minimi
    • Origin(s): Pisiform and flexor retinaculum
    • Insertion(s): Proximal phalanx of the 5th digit
    • Action(s): Abduction of the 5th digit
    • Innervation(s): Deep branch of the ulnar nerve
  • Flexor Digiti Minimi Brevis
    • Origin(s): Hamate
    • Insertion(s): Proximal phalanx of the 5th digit
    • Action(s): Flexion of the 5th digit
    • Innervation(s): Deep branch of the ulnar nerve
  • Opponens Digiti Minimi
    • Origin(s): Hamate and flexor retinaculum
    • Insertion(s): 5th metacarpal
    • Action(s): Opposition
    • Innervation(s): Deep branch of the ulnar nerve
  • Adductor Digiti Minimi
    • Origin(s): Pisiform and flexor retinaculum
    • Insertion(s): Proximal phalanx of the 5th digit
    • Action(s): Abduction of the 5th digit
    • Innervation(s): Deep branch of the ulnar nerve
  • How to Palpate the Hypothenar Muscles:
    • Position of Partner: Sitting
    • Directions: To palpate this group of muscles, first identify the soft tissue pad at the base of the pinkie called the hypothenar eminence. Palpate this bulge of soft tissue to collectively examine these muscles.

Lumbricals

  • Origin(s): Flexor digitorum profundus
  • Insertion(s): Extensor expansion
  • Action(s): Flexion of metacarpophalangeal joints and extension of interphalangeal joints
  • Innervation(s): Median nerve (1st and 2nd lumbrical) and deep branch of the ulnar nerve (3rd and 4th lumbrical)
  • How to Palpate
    • Position of Partner: Sitting
    • Directions: Because these muscles are located very deep, they can be very difficult to palpate. When attempting to do so, follow from the origin of the flexor digitorum profundus tendons and work your way distally to their insertions on the extensor expansion of the digits.

Palmar and Dorsal Interossei

  • Origin(s): Metacarpals
  • Insertion(s): Proximal phalanxes and extensor expansions
  • Action
    • Palmar Interossei: Adduction
    • Dorsal Interossei: Abduction
  • Innervation(s): Deep branch of ulnar nerve
  • How to Palpate
    • Position of Partner: Sitting
    • Directions: Because these muscles are located very deep, they can be very difficult to palpate. When attempting to do so, follow their origin along the metacarpals to the proximal phalanxes and extensor expansions. The first dorsal interossei is the most prominent of all these muscles as it’s located between the 1st and 2nd digit on the dorsal side between the metacarpal bones.

Other Anatomical Landmarks

Palmar view of the thenar and hypothenar eminences of the right hand with eminences individually identified.
Figure 4.7. Thenar and Hypothenar Eminences; Palmar View by Dan Silver is used under a CC BY 4.0 license.
Demonstration of palpation of the right anatomical snuffbox by an examiner.
Figure 4.8 Anatomical Snuffbox; Dorsal View by Dan Silver is used under a CC BY 4.0 license.

Thenar Eminence

  • How to Palpate
    • Position of Partner: Sitting with a supinated forearm
    • Directions: The thenar eminence is the enlarged mound of soft tissue at the base of the thumb on the palmar side. This enlarged area of soft tissue is created by the muscle bellies of some of the smaller thumb muscles. To palpate, simply identify this enlarged area on the palmar side of the hand and fully palpate the region.

Hypothenar Eminence

  • How to Palpate
    • Position of Partner: Sitting with a supinated forearm
    • Directions: Similar to the thenar eminence, this area is created by muscle bellies of some of the smaller pinkie muscles. Identify the enlarged mound of soft tissue at the base of the pinkie on the palmar side and palpate fully.

Anatomical Snuffbox

  • How to Palpate
    • Position of Partner: Sitting with a pronated forearm
    • Directions: This depression is found on the dorsal side of the hand, at the base of the thumb, between several tendons of the hand. Medially, the extensor pollicis longus creates a border while the lateral border is created by the extensor pollicis brevis and abductor pollicis longus. While moving the thumb in the appropriate directions, these tendons will become activated and more apparent while creating a soft tissue depression between them, which is the anatomical snuffbox. When palpating into the snuffbox, the scaphoid can be felt.

Radial Artery

  • How to Palpate
    • Position of Partner: Sitting with a supinated forearm
    • Directions: Locate the most superficial point of the radial artery, which runs along the anterior side of the wrist toward the lateral side. Palpate over the flexor creases of the hand at the most lateral aspect of the anterior wrist with your 2nd and 3rd digits to feel the pulse of this artery.

Range of Motion

Table 4.1 Range of Motion of the Wrist & Hand

Joint Actions

Tips for ROM Assessment

Picture of Joint Action

Wrist Flexion and Extension

Try to isolate these movements as much as possible when assessing these ranges to ensure they’re not compensating with the use of other arm musculature.

Person demonstrating left wrist flexion and the silhouette of extension wrist position.
Ulnar Deviation and Radial Deviation

When assessing these ranges, it’s important to recognize they are very limited and it ’ s normal to have a small range of motion for both radial and ulnar deviation . It’s also important to make sure the hand is moving in the frontal plane and that there is no rotation of the forearm , or flexion and extension of the wrist, occurring when performing these movements.

Person demonstrating ulnar deviation from a neutral position with directional arrows in the frontal plane present. Person demonstrating radial deviation from a neutral position with directional arrows in the frontal plane present.
Abduction and Adduction of the Fingers

Abduction and adduction of the fingers occurs at the metacarpophalangeal joints. T he midline for these motions is defined as being through the third finger , and the other fingers either move toward this midline (adduction) or away from this midline (abduction).

Posterior view of metacarpophalangeal abduction of joints in the left hand. Posterior view of metacarpophalangeal adduction of joints in the left hand.
Flexion and Extension of the Fingers

Flexion and extension can be performed at the metacarpophalangeal or interphalangeal joints. These ranges can be assessed one digit and even one joint at a time or all together. The goal or purpose of the assessment will determine your approach. Either way, it’s important to always maintain a neutral wrist during these ranges to ensure no extra tension is being placed on some of these muscles.

Person demonstrating finger flexion and extension of the left hand with directional arrows.

Figures 4.9-4.14 by Dan Silver are used under a CC BY 4.0 license.

Clinical Correlations

Carpal Tunnel Syndrome

  • Background: The carpal tunnel is a small area within the wrist that is enclosed by surrounding carpal bones and ligaments. Located within the narrow tunnel are several tendons along with the median nerve.
  • When the tendons within the tunnel become inflamed, due to overuse of the muscle, the median nerve can become compressed. Carpal tunnel syndrome refers to the compression of this nerve, along with the many symptoms that result from the nerve not properly functioning, such as numbness and weakness of the innervated areas of the hand.

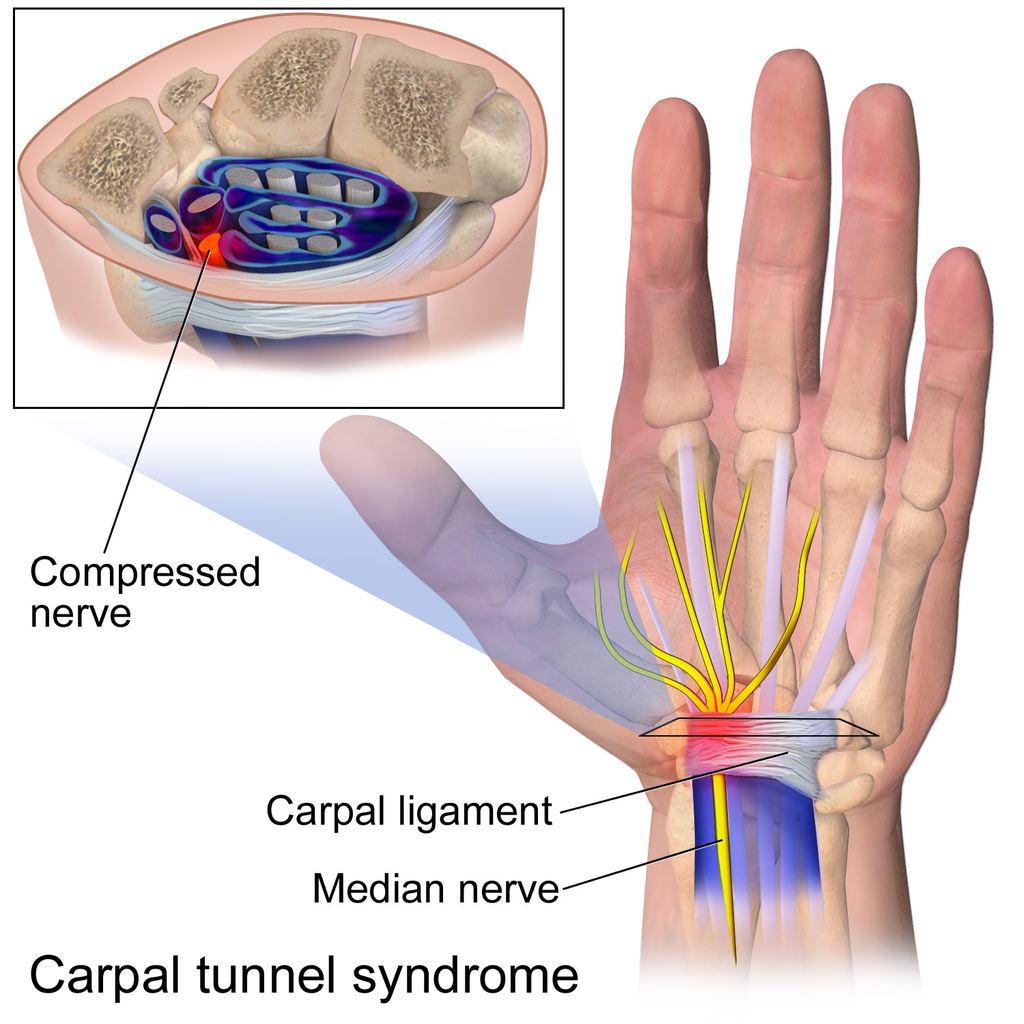

Identification of the relevant anatomy for carpal tunnel syndrome with the median nerve presented in a transverse view of the carpal tunnel box. Median nerve compression at the flexor retinaculum is shown.
Figure 4.15. Carpal Tunnel Syndrome by Blausen.com staff is used under a CC BY 4.0 license.

Ulnar Nerve Palsy

  • Background: The term palsy refers to the paralysis, or loss of ability to move, of the muscles innervated by a provided nerve.
  • A common site of damage to the ulnar nerve occurs within the hand where the ulnar nerve runs through a small tunnel around the area of the hypothenar eminence. Prolonged pressure on this area of the hand can cause transient, and sometimes more severe, neurological dysfunction, including numbness and tingling along with weakness of the muscles this nerve innervates.

Jersey Finger

  • Background: There are several tendons located along the palmar and dorsal sides of the fingers. Excessive movements of finger joints can cause injury to these tendons.
  • When an athlete grabs the jersey of a player who is getting away, their distal interphalangeal joint can be pulled into hyperextension, causing damage to the flexor digitorum profundus tendon, which is located on the palmar side of the finger. A notable decrease or lack of ability to flex the distal interphalangeal joint is a sign this injury has occurred.

Review Questions: Skeletal Landmarks of the Wrist and Hand

  1. The dorsal tubercle of the radius is located on the (anterior / posterior) side of the wrist.

  2. A proximal phalanx articulates with a                            bone proximally.

  3. A distal interphalangeal is located between two bones, a                            and a                           .

  4. Which two carpal bones can be found in line with the 3rd digit?

  5. The scaphoid bone should be accessed on the (palmar / dorsal) side of the hand when palpating.

  6. The head of the radius is (proximal / distal) while the head of the ulna is (proximal / distal).

  7. The fifth digit is more commonly referred to as the                           .

  8. Which two carpal bones are found at the base of the thumb?

  9. The head of a metacarpal is located at the (proximal / distal) end, while the base is located at the (proximal / distal) end.

  10. What mnemonic helps you remember the order of the carpal bones in the wrist?

Review Questions: Musculature of the Wrist and Hand

  1. The lumbricals act to                            the metacarpophalangeal joints and                            the interphalangeal joints.

  2. The extensor indicis muscle is located on the (anterior / posterior) side of the forearm.

  3. The term pollicis refers to which numbered digit?

  4. The thenar eminence is located at the base of the (5th digit / 1st digit), while the hypothenar eminence is located at the base of the (5th digit / 1st digit).

  5. Which digit serves as the midline of the hand?

  6. A muscle with the term digitorum in the name acts on which digits of the hand?

  7. Describe the action of opposition.

  8. The palmar interossei act to                            the fingers, while the dorsal interossei act to                            the fingers.

  9. Which muscle of the thumb has both a transverse and an oblique head?

  10. The abductor digiti minimi originates on which carpal bone?

Annotate

Next Chapter
5. The Spine, Thorax, and Abdomen
PreviousNext
Powered by Manifold Scholarship. Learn more at
Opens in new tab or windowmanifoldapp.org
